Titan End Frame Access Mobile Tower

TITAN END FRAME ACCESS MOBILE TOWER SCAFFOLD

  • 1350mm wide x 2500mm long Double Width

  • 900mm wide x 2500mm long Single Width

The end frame tower is a heavy duty commercial grade scaffold and is designed with the Tradesman in mind, instead of having a separate access ladder it has the ladder built into end frame for easier transport to site, it has all the features to comply with the 6.1 mobile scaffolding best practice guidelines including.



  • Top and bottom handrails for every platform.

  • Kick boards for every platform.

  • Fully decked platforms.

  • Safe access to each platform, (Access Ladder in the frame)

All ladder access towers y are designed and engineered to the AS/AZ1576.1:2010 scaffolding standards, and all are under 5.0m in height so can be assembled, disassembled and used by any competent person,  NO SCAFFOLDING TICKET REQUIRED



CodeMoible Tower DescriptionFrame widthFrame LengthPlatform HeightReach HeightRRP
TTSWN2.0Single WidthBase Kit0.9m2.5m2.0m4.0m
TTSWNEXSingle WidthExtension Kit for base kit0.9m2.5m4.0m
6.0m
TTSWN4.0Single WidthBase Kit + Extention Kit0.9m2.5m4.0m
6.0m
TTDWN2.0Double WidthBase Kit1.4m2.5m2.0m
4.0m
TTDWNEXDouble WidthExtension Kit for base kit1.4m2.5m4.0m
6.0m

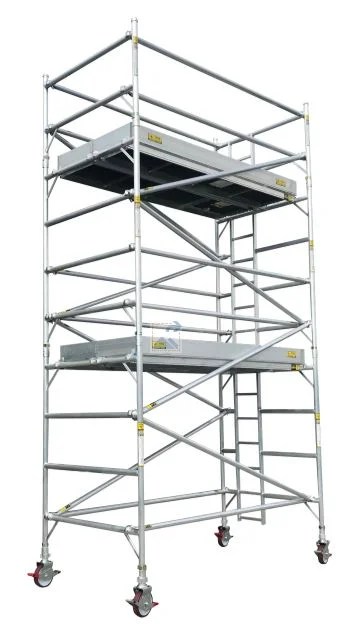

TTDWN4.0Double WidthBase Kit + Extention Kit1.4m2.5m4.0m
6.0m







SINGLE WIDTH BASE KIT SINGLE WIDTH EXTENSION KIT
2 x  900mm 4 Rung Frames 1 x Hatch Platform
2 x Guardrail Frames 1 x Folding Kick board
1 x Hatch platform 4 x Diagonals
4 x Diagonals 4 x Horizontals
6 x Horizontals 2 x 900mm 4 Rung Frames
1 x Folding Kick board 2 x Outriggers
4 x 200mm Adjustable Castors



 DOUBLE WIDTH BASE KIT  DOUBLE WIDTH EXTENSION KIT
2 x  1300mm 4 Rung Frames 1 x Hatch Platform
2 x Guardrail Frames 1 X Fixed Platform
1 x Hatch platform 4 x Diagonals
 4 x Diagonals 4 x Horizontals
6 x Horizontals 2 x 1300mm 4 Rung Frames
1 x Folding Kick board 1 x Folding Kick board
4 x 200mm Adjustable Castors
